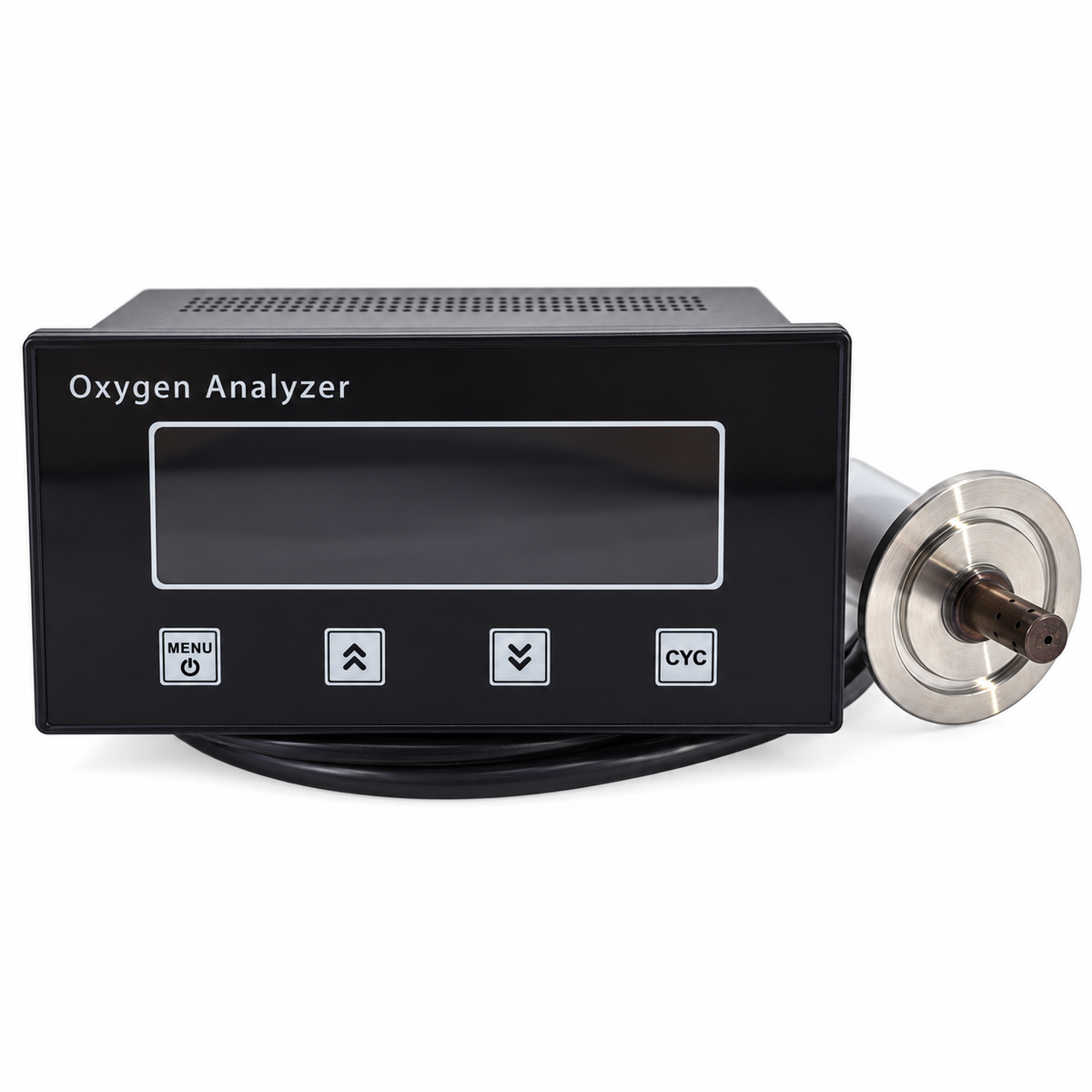

Oxygen Analyzer
USD 945.00
Available with a complete system
Supplied only with a complete AcrylLAB glove box system. Contact us to confirm compatibility and include this option in your system quotation.
Configure with a chamberContinuous oxygen monitoring for glove box applications. This oxygen analyzer is supplied as an optional accessory with a complete AcrylLAB glove box system and is not sold separately.
Key specifications
| Sensor technology | Zirconia |
|---|---|
| Measurement range | 1 ppm to 21% O2 |
| Response time | T90 ≤ 20 seconds |
| Analog output | 4-20 mA |
| Digital communication | RS485, Modbus RTU |
| Alarm outputs | Two configurable alarm outputs |
| Power supply | 100-240 V AC, 50/60 Hz |
| Probe connection | Insertion-type diffusion probe; KF25 or KF40 flange, confirmed for the selected system |
Order with a glove box system
Include this option when requesting your complete-system quotation. Tell us the sample-gas composition, required oxygen range and chamber configuration so we can confirm suitability, the probe interface and installation arrangement.
The analyzer measures oxygen concentration. Oxygen removal or gas purification requires separately specified equipment; the measurement range does not guarantee the oxygen level achieved inside a chamber.
Contact AcrylLAB to include the oxygen analyzer in your system quotation.
